Analysis of Physical & Chemical Properties of Cotton- Jute Blended Denim After a Sustainable (Industrial Stone Enzyme) Wash

Introduction

In the modern world, the use of denim has spread all over the world. Using blended denim may open up a whole new sector in the readymade garments department. After making garments from solid color dyes or pigment printed fabric, the garments are washed. By washing, color & outlook of the garments are modified. As a result, new outlook and appearance is produced in the garments, which is not possible in any other method. Moreover, due to washing, starch materials present in the garment are removed, as a result washed garments could be worn right after purchasing from the store. Denim made from Jute and cotton blend yarn is a relatively new process and by this project we hope to determine what the effect of enzyme wash is on blended denim fabric.

In this work, it is tested that how quality of the fabric is changed after going through Enzyme wash. As both cotton and jute are natural fibers and homegrown in our country, it would be a great asset for the country if it can be marketed and sold as a readymade garment. Denim is one of the world’s oldest fabric’s which is most commonly associated with jeans. Denim is very strong, stiff and hard-wearing fabrics [1]. Denim is twill weave fabric that uses colored warp and white weft yarn and used for jeans, work clothes and casual wear [2]. Denim wear has gained popularity all over the world. As a result, jeans wear is one the most prominent apparel items in the world [3]. The evolution of the denim market has led to the development of some unique and creative denim fabrics and opened new worlds of possibility for finishes [4].The birth of denim jeans is credited to the Bavarian-born businessman, Levi Strauss, who made his way to the Gold Rush in San Francisco nearly 150 years ago. Since then, the denim fabric has run the gamut from a basic work wear fabric to a fashion trend setter, it is one of the most fashionable items in the fashion and textile industry today and the original focus on durability and practicality has changed to fashion. Denim can provide the durability and different appearance effect for the garment when it is conducting the different denim garment, and most people wearing the denim garment. Deterioration in the denim fabric of the textile product is often important to the physical properties in deciding when the article has reached the end of it using life [5].

Industrial garments washing is one of the major processes followed in the textile sector. By industrial garments washing, dust, dirt and infectious materials can be removed from garments. For improving special look on garments as per fashion requirement, a variety of wash techniques can be followed [6]. For washing of denim garments, a range of treatment methods such as enzymatic treatment [7], bleaching treatment [8,9], acid treatment [10,11], and Silicone treatment [12], are used widely. They all are aimed at new possible effects of fabric appearance. Particularly the dry finishing creates many effects on denim fabric; it will stimulate the customers to buy, and also it increases the market potential of the denim market [13]. Nowadays along with denim washing knit garments such as T-shirt, Polo shirt, and trouser, are washed by using different techniques as follows: enzymes wash, softener wash, Silicone wash, tie dye wash, pigment wash, caustic wash, etc. are used to create or enhance the physical and mechanical property changes [14,15]. Enzymes are important in regulating the chemical reactions that occur within all living organisms. Without enzymes, many of these reactions would not be able to take place at a perceptible rate [16]. Jute fibre is a bast fiber obtained from the bark of jute plant containing three main categories of chemical compounds namely cellulose (58~63%), hemi-cellulose (20~24%) and lignin (12~15%), and some other small quantities of constituents like fats, pectin, aqueous extract. Jute fiber is composed of small units of cellulose surrounded and cemented together by lignin and hemicellulose [17]. Jute fiber conventionally is not used for producing wearable textile products as it has some shortcoming in regard to feel, stiffness, drape, coarseness, wash ability and abrasion [18]. Now a days, in jute sector, demand of diversified jute uses, and improved quality is increasing for the use in different areas namely floor coverings, household textiles, technical textiles, handicrafts, etc. [19]. Blending is a technique to overcome the poor characteristics of one fiber. It is the technique to combine fibers which emphasizes the good qualities and minimizes poor qualities of the fibers. It also makes the fabric manufacturing process economical. Jute-cotton blended yarn is one of the examples of it [20]. Blending jute with cotton fiber may be an acceptable way of jute diversification by which value added products can be produced. Jute fibers have several advantages like a lustrous golden appearance, high tenacity and good properties. Hence the techniques of blending and softening could have utilized to upgrade the quality of jute and thus form a new class of jute-based fabrics having an expanding market within and outside the country [21]. In the present work, a few characteristics of jute-cotton blended fabrics have been evaluated. Fabric produced from the blended yarn might have better characteristics than what could be obtained in a fabric produced from a single fiber. Any successful attempt to blend jute fiber with cotton would be a breakthrough in the field of textile [22]. The use of fabrics made from Jute-Cotton blended yarns would surely strength our economy by cutting a part of the cost incurred for importing cotton and enhancing the value addition due to locally produced cheaper jute as a raw material [23].

In garments industry, there are mainly two types of washing process for garments products. Those processes are wet washing process and dry washing process [24]. Here also wet washing process is divided by eight ways and the dry washing process is divided by five ways, according to the fabric quality and buyer requirements. But most common and applied wash in garment is normal wash, which is also known as detergent wash. In the wet washing process enzyme wash, stone wash and bleach wash are most popular to the buyer and the manufacturer. On the other hand, Potassium per magnet spray and hand scraping is common for dry washing process in the garments industry. Garments washing is being used as a novel process to modify the appearance to impart worn-out look and to improve the comfort ability of the garments, especially denim garments [25]. Enzyme washing of denim garments helps in bio-polishing and to fade the color of the denim to a desired degree depending on the processing time and conditions. Adding pumice stone with enzyme extend the degree of fading and adds special effect in the multi ply areas like different seams and hems [26]. Using pumice stone causes wear and tear of the garments and the machine surface .Enzymatic treatments have a lot of advantages over the stone washing but the stone has a different irregular effect on the garments which is very difficult to achieve with only enzyme. As only stone causes harm to the garments and machine, then using enzyme with the stone can bring the desired effect quickly with minimum harm to the garments and machine [27]. So, using enzyme and stone both in the same bath helps to achieve the required shape in comparatively short time with wear and tear of the garments within a tolerable range.

Materials and Methods

Raw materials

The following raw materials are used to complete the evaluation of this work:

• Jute-cotton blended denim fabric

• Chemicals: Chemicals used for the Enzyme wash are listed below-

• Desizing agent (Soda Ash)

• Anti-Back staining agent

• Neutral enzyme

Bleaching agent (KMnO₄)

• Neutralizing Agent (Hydroxyl Ammonium Sulphate)

• Garments Washing Machine

• Zanussi Hydro Extractor

• Opti-Dry Drying machine

• Electronic Crock Meter

• Fabric GSM Cutter

• Scanning Electron Microscope (SEM)

Methods

Method of experiment: Stone Enzyme wash is done on the denim leg panel. The processes parameters are given below:

Desizing

• Desizing agent: 50gm

• Anti-Back staining agent: 50gm

• Temperature: 50°c

• Time: 10min

• Water: 120 liters

• Fabric weight: 450gm (Approx.)

Stone enzyme wash

• Neutral Enzyme: 100gm

• Pumice stone: 3.5kg

• Anti-Back staining agent: 100gm

• Temperature: 45°c

• PH: 6-7

• Time: 15 minutes

• Water: 100 liters

Bleach wash

• Time: 10min

• Temperature: 40°c

• P.H: 10-11

• Water: 100 liters

• Bleaching agent: KMnO₄ (6 gm)

Neutralization

Hydroxyl Ammonium Sulphate is used for neutralizing.

Hydro extraction

Hydro-extraction is done for 1.5min to extract all the excess water from the fabric.

Dryer

Steam drier is used to dry the fabric. Machine is run for 20 minutes.

The flowchart for the whole process is given below

1. Desizing

Garments are loaded

↓

Water is added (120 liter)

↓

Machine started running

↓

50 gm Soda Ash added

↓

50 gm Anti back staining agent added

↓

Steam to raise temp 50°C

↓

Process time 10 minutes

↓

Drop liquor

↓

Wash down twice

2.Stone Enzyme wash

Garments loading

↓

Water is added (100 Liter)

↓

Machine started running

↓

100gm Neutral Enzyme added

↓

100 gm Anti back staining agent added

↓

Steam to raise temp 45°C

↓

Process time 20 minutes

↓

Drop liquor

3.Bleach wash

Water is added (100 Liter)

↓

Machine started running

↓

6gm KMnO4 added

↓

Steam to raise temp 40°C

↓

Process time 5 minutes

↓

Drop liquor

4.Neutralization

Water is added (400 Lt)

↓

Machine started running

↓

Hydroxyl Ammonium Sulphate added

↓

1 Kg Salt added

↓

Steam to raise temp 50°C

↓

Process time 10 minutes

↓

Check Shade

↓

Drop the liquor

5.Drying

Garments are then taken out

↓

Hydro extracted for 1.5 min

↓

Send to dryer for 20 minutes

Method of Testing & Data Collection

EPI & PPI

In order to measure EPI and PPI, 3 samples are taken. 1 sq. inch counting glass is used to measure the number of yarns in both warp and weft direction. The number of warp yarns per sq. inch is EPI and the number of weft yarns per sq. inch is PPI. The average of 3 samples are taken before and after wash.

Shrinkage

A square of 10” x 10” is marked on the fabric samples using permanent marker before washing. The length and width of the square is measured after washing. The difference is used to measure the shrinkage according to AATCC test method ASTM D 2724, BS 4931.

GSM Test

Fabric is cut from the leg panel using the GSM Cutter and the cut piece is measured using an electric balance. Then the measured weight is multiplied by 100 to get the value of GSM. The method used was ASTM D 3776.

Tensile strength

Method: US Standard Grab test method according to ASTMD – 5034

Dimension of sample – 6” x 4”

Gauge length – 75mm

Strength is measured before and after wash to quantify the strength loss.

Rubbing test

Method– Crocking (AATCC) Machine– Crock meter

Sample dimensions– 130mm x 50mm

Cycle– 10

Rubbing test is done both in wet and dry conditions.

Color fastness to wash

Method– AATCC 61 2(A)

Sample dimensions– 6” x 2”

Washing parameters:

▪ Temperature – 49°C

▪ Time – 45min

▪ RPM – 40

▪ Steel Ball – 50 pcs

▪ Dia of steel ball – 6mm

Process Flowchart of washing

1-liter distilled water taken

↓

150 gm AATCC detergent added (without OBA)

↓

Making solution by stirring

↓

Solution for specimen (150 ml)

↓

Fabric is placed into the steel container

↓

Container is placed into the Laundry meter

↓

Start the machine

↓

Rotate for 45 minutes

↓

Washing (cooling)

↓

Drying (15-20 mins)

Then the fabric is taken under the light box to match with grey scale to determine the color fastness to wash.

pH test

Machine used - Mettler Toledo pH meter

250ml distilled water taken and boiled for 10 minutes. Then 10gm sample is cut in small pieces in 2 batches and added to the water one batch at a time and kept under water for 10 minutes. The temperature has to be moderate and the sample is cooled after taking out of the water.

SEM test

The morphological value of the jute-cotton denim fabric was examined by scanning electron microscopy (SEM).

Brand: Hitachi

Model: S 3400 N

Origin: Japan

Results and Discussion

Results

EPI & PPI

Shrinkage

• Initial length – 10 inches

• Initial width – 10 inches

• After wash length – 9.5 inches

• After wash width – 9.3 inches

So, Length wise shrinkage=

So, Width wise shrinkage=

GSM Test

Rubbing Test

Grey scale results for the rubbing test are-

• Dry test – 4.5

• Wet test – 2

Tensile Strength test

Color fastness to wash

Grey scale results for the color fastness test is:

Bleeding - 3.5

Staining to Multifiber

• Acetate – 3.5

• Cotton – 3.0

• Nylon – 3.5

• Polyester – 4.5

• Acrylic – 4.5

• Wool – 3.5

pH test

pH was tested using two samples after wash

• Sample-1 pH: 6.4

• Sample-2 pH: 6.5

SEM Test

Discussion

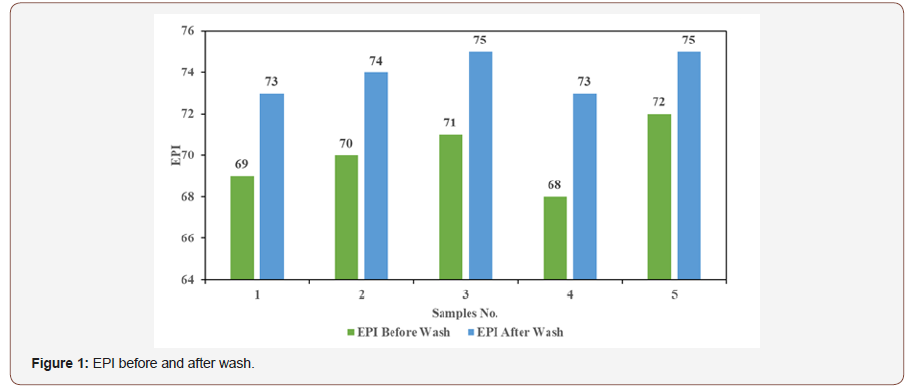

EPI & PPI

From the Figure 1 & Figure 2 it can see that both EPI and PPI increased after the enzyme wash. That means the number of warp and weft yarn was increased inside a specific area.

Shrinkage

From the shrinkage test done on 10” x 10” sample, it found out both lengthwise and widthwise shrinkage occurred in the fabric. But the shrinkage amount was overall lower than regular cotton denim fabric. Also, width wise shrinkage was higher than length wise shrinkage.

GSM Test

From the GSM test, here it saw that the GSM of the fabric increased from 340 to 348 gm/m2. Here, GSM is increased like regular cotton denim.

Rubbing Test

Here the crock meter is used to test the rubbing fastness on the fabric in both dry and wet condition. The fabric fared very well in the dry staining test scoring 4.5 on the gray scale. But the result of the wet test was not up to standard as it was 2 on the gray scale meaning there was heavy staining on the crock meter fabric (Figures 3-5).

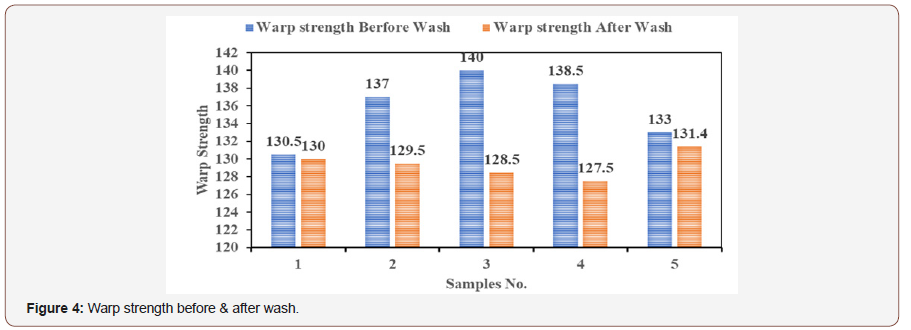

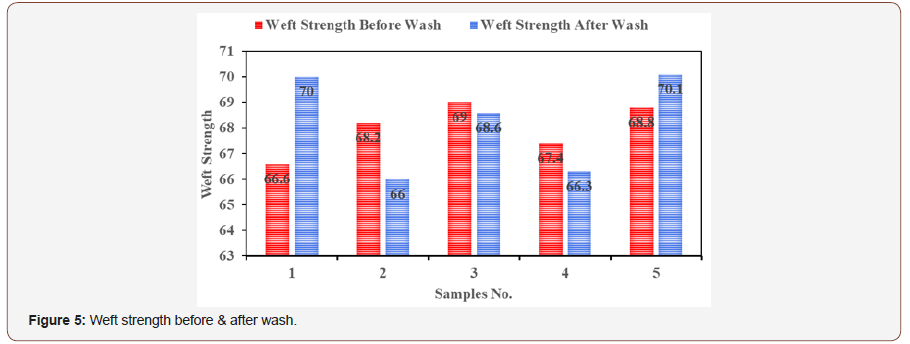

Tensile Strength test

Here checked both the warp way strength and weft way strength before and after wash. In both directions, the strength went down after the enzyme wash. The fabric lost considerable amount of strength after the wash.

Color fastness to wash

After washing the fabric under laboratory condition, we used the gray scale to measure the color fastness to wash where it scored 3.5 out of 5. That means, the fabric shows considerable performance to color fastness to wash.

pH test

We checked the pH of the fabric surface using the pH meter and the result was slightly different for the two samples we used. But the variation was 0.1 and in both cases the fabric was slightly acidic at 6.4 and 6.5.

SEM Test

After washing the cotton-denim fabric with Stone Enzyme wash the Fabric was looking more attractive and here its molecules are looking more compact (Figures 6-8).

Conclusion

Through this work it was the Analysis of Physical & Chemical Properties of Cotton Jute Blended Denim after a Sustainable (Industrial Stone Enzyme) Wash. The EPI and PPI, GSM was increased after washing process. In this work the warp strength decreased but it was not too much. On the other hand, the weft strength was increased a little bit. By this work we have found a new shade that will be helpful to increase the beauty of the denim. If this research can be applied in textile production purposes it will be more beneficial to the whole world. So, it can be a new revolution in the world of Denim.

Acknowledgement

The authors wish to thank Government Jute Denim Project of Bangladesh, Bangladesh University of Textile (BUTEX) and Mawlana Bhashani Science and Technology University (MBSTU) for the financial support for this work.

Conflict of Interest

No conflict of interest.
