Effect of Boundary Conditions on Buckling Load for Laminated Composite Plates

Osama Mohammed Elmardi Suleiman1*, Mahmoud Yassin Osman2 and Tagelsir Hassan3

1Federal University of Technology, Akure, Nigeria

2Department of Mechanical Engineering, Kassala University, Sudan

1Department of Mechanical Engineering, Omdurman Islamic University, Sudan

Corresponding Author

Received Date: March 27, 2019;  Published Date: April 30, 2019

Abstract

It is observed that, for all cases the buckling load increases with the mode number but at different rates depending on whether the plate is simply supported, clamped or clamped – simply supported. The buckling load is a minimum when the plate is simply supported and a maximum when the plate is clamped. Because of the rigidity of clamped boundary condition, the buckling load is higher than in simply supported boundary condition. It is also observed that as the mode number increases, the plate needs additional support.

Keywords: Boundary conditions; Biaxial buckling; Classical laminated plate theory; Finite element; Fortran program; Composite laminated decks plates

Introduction

The objective of this research paper is to present a complete and up to date treatment of uniform cross section rectangular laminated decks plates on buckling. Finite element (FE) method is used for solving governing equations of thin laminated composite plates and their solution using classical laminated plate theory (CLPT). Plates are common structural elements of most engineering structures, including aerospace, automotive, and civil engineering structures, and their study from theoretical and experimental analyses points of view are fundamental to the understanding of the behavior of such structures.

The motivation that led to the carrying out of the present study has come from many years of studying classical laminated plate theory (CLPT) and its analysis by the finite element (FE) method, and also from the fact that there does not exist a publication that contains a detailed coverage of classical laminated plate theory and finite element method in one volume. The present study is an attempt to fulfill the need for a complete treatment of classical laminated theory of plates and its solution by a numerical solution.

The material presented is intended to serve as a basis for a critical study of the fundamentals of elasticity and several branches of solid mechanics including advanced mechanics of materials, theories of plates, composite materials and numerical methods.

Geophysics is the application of physics principles to the study of the Earth. The Earth is comprised of materials that have different physical properties. Geophysical instruments are designed to map spatial variations in the physical properties of the Earth. Geophysicists interpret these measured variations and use them to generate geologic models of varying sophistication. If the subsurface target of interest can be differentiated from the encompassing strata on the basis of contrasting physical properties, the output geologic model can be of great utility to a geotechnical engineer.

The problem of critical buckling loads of laminated composite plates is analyzed and solved using the energy method which is formulated by a finite element model. In that model, four nodded rectangular elements of a plate is considered. Each element has three degrees of freedom at each node. The degrees of freedom are the lateral displacement w, and the rotations ϕ and ψ about the y and x axes respectively.

The effects of lamination scheme on the non – dimensional critical buckling loads of laminated composite plates are investigated.

irispublishers-openaccess-engineering-sciences

Several numerical methods could be used in this study, but the main ones are finite difference method (FDM), dynamic relaxation coupled with finite difference method (DR) as is shown in references [1-8], and finite element method (FEM).

In the present work, a numerical method known as finite element method (FEM) is used. It is a numerical procedure for obtaining solutions to many of the problems encountered in engineering analysis. It has two primary subdivisions. The first utilizes discrete elements to obtain the joint displacements and member forces of a structural framework. The second uses the continuum elements to obtain approximate solutions to heat transfer, fluid mechanics, and solid mechanics problem. The formulation using the discrete element is referred to as matrix analysis of structures and yields results identical with the classical analysis of structural frameworks. The second approach is the true finite element method. It yields approximate values of the desired parameters at specific points called nodes. A general finite element computers program, however, is capable of solving both types of problems and the name” finite element method” is often used to denote both the discrete element and the continuum element formulations.

The finite element method combines several mathematical concepts to produce a system of linear and non – linear equations. The number of equations is usually very large, anywhere from 20 to 20,000 or more and requires the computational power of the digital computer.

It is impossible to document the exact origin of the finite element method because the basic concepts have evolved over a period of 150 or more years. The method as we know it today is an outgrowth of several papers published in the 1950th that extended the matrix analysis of structures to continuum bodies. The space exploration of the 1960th provided money for basic research, which placed the method of a firm mathematical foundation and stimulated the development of multi-purpose computer programs that implemented the method. The design of airplanes, unmanned drones, missiles, space capsules, and the like, provided application areas.

The finite element method (FEM) is a powerful numerical method, which is used as a computational technique for the solution of differential equations that arise in various fields of engineering and applied sciences. The finite element method is based on the concept that one can replace any continuum by an assemblage of simply shaped elements, called finite elements with well-defined force, displacement, and material relationships. While one may not be able to derive a closed – form solution for the continuum, one can derive approximate solutions for the element assemblage that replaces it. The approximate solutions or approximation functions are often constructed using ideas from interpolation theory, and hence they are also called interpolation functions. For more details refer to References [9-11].

Mathematical Formulations

Introduction

The following assumptions were made in developing the mathematical formulations of laminated plates:

1. All layers behave elastically;

2. Displacements are small compared with the plate thickness;

3. Perfect bonding exists between layers;

4. The laminate is equivalent to a single anisotropic layer;

5. The plate is flat and has a constant thickness;

6. The plate buckles in a vacuum and all kinds of damping are neglected.

Unlike homogeneous plates, where the coordinates are chosen solely based on the plate shape, coordinates for laminated plates should be chosen carefully. There are two main factors for the choice of the coordinate system. The first factor is the shape of the plate. Where rectangular plates will be best represented by the choice of rectangular (i.e. Cartesian) coordinates. It will be relatively easy to represent the boundaries of such plates with coordinates. The second factor is the fiber orientation or orthotropic. If the fibers are set straight within each lamina, then rectangular orthotropic would result. It is possible to set the fibers in a radial and circular fashion, which would result in circular orthotropic. Indeed, the fibers can also be set in elliptical directions, which would result in elliptical orthotropic.

The choice of the coordinate system is of critical importance for laminated plates. This is because plates with rectangular orthotropic could be set on rectangular, triangular, circular or other boundaries. Composite materials with rectangular orthotropic are the most popular, mainly because of their ease in design and manufacturing. The equations that follow are developed for materials with rectangular orthotropic.

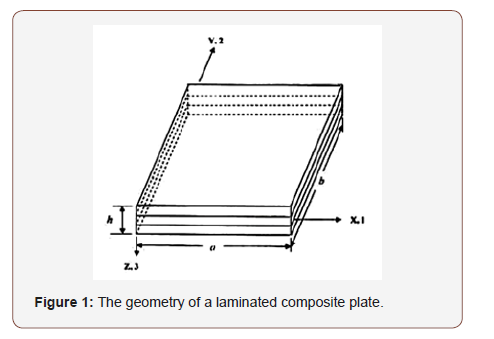

Figure 1 shows the geometry of a plate with rectangular orthotropic drawn in the Cartesian coordinates X, Y, and Z or 1, 2, and 3. The parameters used in such a plate are: (1) the length in the X-direction, (a); (2) the length in the Y – direction (i.e. breadth), (b); and (3) the length in the Z – direction (i.e. thickness), (h).

irispublishers-openaccess-engineering-sciences

Fundamental equations of elasticity

Classical laminated plate theory (CLPT) is selected to formulate the problem. Consider a thin plate of length a, breadth b, and thickness h as shown in Figure 2(a), subjected to in – plane loads Rx, Ry and Rxy as shown in Figure 2(b). The in-plane displacements u(x,y,z) and v(x,y,z) can be expressed in terms of the out of plane displacement w(x,y) as shown below:

irispublishers-openaccess-engineering-sciences

The displacements are:

irispublishers-openaccess-engineering-sciences

Where , and are mid – plane displacements in the direction of the x, y and z axes respectively; z is the perpendicular distance from mid – plane to the layer plane.

The plate shown in Figure 2(a) is constructed of an arbitrary number of orthotropic layers bonded together as in Figure 3.

irispublishers-openaccess-engineering-sciences

The strains are:

irispublishers-openaccess-engineering-sciences

The virtual strains:

irispublishers-openaccess-engineering-sciences

The virtual strain energy:

irispublishers-openaccess-engineering-sciences

If we neglect the in-plane displacements and and considering only the linear terms in the strain-displacement equations, we write:

irispublishers-openaccess-engineering-sciences

The Numerical Method

The finite element is used in this analysis as a numerical method to predict the buckling loads and shape modes of buckling of laminated rectangular plates [12,13]. In this method of analysis, four – nodded type of elements is chosen. These elements are the four – nodded bilinear rectangular elements of a plate. Each element has three degrees of freedom at each node. The degrees of freedom are the lateral displacement (w), and the rotations (ϕ) and (ψ) about the (X) and (Y) axes respectively.

The finite element method is formulated by the energy method. The numerical method can be summarized in the following procedures:

• The choice of the element and its shape functions.

• Formulation of finite element model by the energy approach to develop both element stiffness and differential matrices.

• Employment of the principles of non – dimensionality to convert the element matrices to their non – dimensional forms.

• Assembly of both element stiffness and differential matrices to obtain the corresponding global matrices.

• Introduction of boundary conditions as required for the plate edges.

• Suitable software can be used to solve the problem.

• For an n nodded element, and 3 degrees of freedom at each node.

Now express w in terms of the shape functions N (given in Appendix (B)) and nodded displacements , equation (6) can be written as:

irispublishers-openaccess-engineering-sciences

The stress – strain relation is:

σ = C∈

Where C are the material properties which could be written as follows:

irispublishers-openaccess-engineering-sciences

Where are given in Appendix (A).

irispublishers-openaccess-engineering-sciences

Where V denotes volume.

irispublishers-openaccess-engineering-sciences

Where irispublishers-openaccess-engineering-sciences is the bending stiffness, and Ke is the element stiffness matrix which could be written as follows:

irispublishers-openaccess-engineering-sciences
irispublishers-openaccess-engineering-sciences

Denoting the nonlinear part of strain by

irispublishers-openaccess-engineering-sciences

This can be written as:

irispublishers-openaccess-engineering-sciences

Substitute Px = −Nx , Py = −Ny , Pxy = −Nxy

irispublishers-openaccess-engineering-sciences

Therefore, equation (15) could be written in the following form:

irispublishers-openaccess-engineering-sciences

is the differential stiffness matrix known also as geometric stiffness matrix, initial stress matrix, and initial load matrix.

The total energy:

δU +δW = 0 (17)

Since δae is an arbitrary displacement which is not zero, then

Keae − KDae = 0 (18)

Now let us compute the elements stiffness and the differential matrices.

irispublishers-openaccess-engineering-sciences

The elements stiffness matrix can be expressed as follows:

irispublishers-openaccess-engineering-sciences

The elements differential stiffness matrix can be expressed as follows;

irispublishers-openaccess-engineering-sciences

The integrals in equations (19) and (20) are given in Appendix (C).

The shape local co-ordinate for a 4-nodded element is shown below in Figure 5.

The shape functions for the 4-nodded element expressed in global co-ordinates (x,y) are as follows:

irispublishers-openaccess-engineering-sciences
irispublishers-openaccess-engineering-sciences

Where,

irispublishers-openaccess-engineering-sciences

The shape functions in local co – ordinates are as follows:

irispublishers-openaccess-engineering-sciences

The integrals of the shape functions in local co – ordinates are as follows:

irispublishers-openaccess-engineering-sciences
irispublishers-openaccess-engineering-sciences

The integrals of the shape functions in global co – ordinates are as follows:

irispublishers-openaccess-engineering-sciences
irispublishers-openaccess-engineering-sciences

In the previous equations irispublishers-openaccess-engineering-sciences where a and b are the lengths of the plate along the x – and y – axis respectively. n and m are the number of elements in the x – and y – directions respectively.

The elements of the stiffness matrix and the differential matrix can be written as follows:

or in the non – dimensional form:

irispublishers-openaccess-engineering-sciences
irispublishers-openaccess-engineering-sciences

The transformed stiffnesses are as follows:

irispublishers-openaccess-engineering-sciences

E1 and E2 are the elastic moduli in the direction of the fiber and the transverse directions respectively, v is the Poisson’s ratio. G12, G13, and G23 are the shear moduli in the x – y plane, y – z plane, and x – z plane respectively, and the subscripts 1 and 2 refer to the direction of fiber and the transverse direction respectively.

Effect of Boundary Conditions

The type of boundary support is an important factor in determining the buckling loads of a plate along with other factors such as aspect ratio, modulus ratio, … etc.

Three sets of boundary conditions, namely simply – simply supported (SS), clamped – clamped (CC), and clamped – simply supported (CS) were considered in this study.

The variations of buckling load, with the mode number for thin (a/h=20) symmetrically loaded laminated cross – ply (0/90/90/0) plate with modulus ratio (E1/E2=5) were computed and the results are given in Table 1 and Figure 6.

irispublishers-openaccess-engineering-sciences

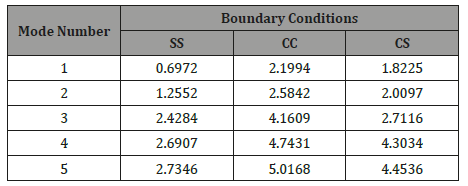

Table 1:The first five non – dimensional buckling loads irispublishers-openaccess-engineering-sciences of symmetric (0/90/90/0) square laminated plates with a / h = 20 , and E1 / E2 = 5 .

irispublishers-openaccess-engineering-sciences

It is observed that, for all cases the buckling load increases with the mode number but at different rates depending on whether the plate is simply supported, clamped or clamped – simply supported. The buckling load is a minimum when the plate is simply supported and a maximum when the plate is clamped. Because of the rigidity of clamped boundary condition, the buckling load is higher than in simply supported boundary condition. It is also observed that as the mode number increases, the plate needs additional support.
