Evaluation of Thermo-Mechanical Properties of Carbon/Epoxy Amino-Functionalized Graphene Nanoplatelet Composite
Received Date: February 11, 2020; Published Date: February 19, 2021
A systematic study has been conducted on processing and characterizing of carbon fiber reinforced epoxy polymer (CFRP) composites to enhance its viscoelastic and thermal properties through the integration of optimized amount of amino-functionalized (NH2-GNP) graphene nanoplatelet (GNP). Epoxy resin, EPON 828, was modified infusing 0.1, 0.2, 0.3, 0.4, and 0.5 wt % of NH2-GNP as a nano reinforcing agent. The GNP was infused into EPON 828 resin using a high intensity ultrasonic processor followed by a three-roll milling for better dispersion. Epikure 3223 curing agent was then added to the modified resin and mixed using a high-speed mechanical stirrer. The nanophase epoxy was then used to fabricate CFRP nanocomposites using the compression molding process. Dynamic mechanical analysis (DMA) and thermomechanical analysis (TMA) were performed to analyze the viscoelastic and thermal performances of these composites. In all cases, the 0.4 wt% GNP-infused epoxy nanocomposite exhibited the best properties. The 0.4 wt % GNP modified carbon fiber/epoxy composite demonstrated 19% and 23% improvement in storage modulus and loss modulus, respectively. Moreover, there were about 13% and 28% reduction in the coefficient of thermal expansion before and after glass transition temperature, respectively. Glass transition temperature and crosslink-density were also observed to be enhanced for the 0.4 wt % loading due to better interfacial interaction and effective load transfer between the NH2-GNP and the epoxy resin.
Keywords:Graphene nanoplatelet; Viscoelastic properties; Amino functionalized; DMA; TMA
Demand for fiber reinforced polymer (FRP) composites in aviation, automotive, naval, structural, and recreational sporting industries is increasing because of their excellent corrosion resistance, lightweight, higher specific strength and stiffness to weight ratio, ease of reparability, ability to absorb noise and damp vibrations, design flexibility, and ease of manufacturing processes [1- 2]. Researchers both in academia and industry are trying to develop multifunctional materials that demonstrate optimized mechanical, thermal, and electrical properties to use the same bulk material for multipurpose uses. Improvement in transverse properties of FRP composites such as enhanced fiber/ matrix interfacial strength as well as improved matrix toughness would reduce the chance of out-of-plane damage and enhance the overall performance of FRP composites. In the last two decades, researchers have successfully enhanced the matrix properties by incorporating various nanoparticles including nanoclay, carbon nanofiber (CNF), carbon nanotube (CNT), and silicon carbide. The integration of nanoparticles into the epoxy resin and its fiberreinforced composites improves out of plane properties. Among all nanoparticles, CNT has been proven to be a potential candidate for matrix modification because of its exceptional strength and stiffness, high specific surface area, and high aspect ratio [3-5]. However, due to the higher production cost of CNT , the mass production of CNT-based multifunctional composite materials is also expensive. On the other hand, the graphene nanoplatelet (GNP) having a two dimensional structure is composed of several layers of graphite nanocrystals stacked together [7-8]. The GNP has been providing better reinforcement and conducting fillers along with greatly improved mechanical and thermal properties due to their planar structure and higher aspect ratio. It is considered to be the thinnest material in the universe with immense application potential [9-10]. It is also expected to be the next potential candidate as a nanofiller to produce cost-effective composite materials. Compared with other classic 2D nanofillers such as nanoclay, the GNP has lower mass density and is highly electrically and thermally conductive due to the sp2 hybridized carbons in the monolayer graphene within the GNP. The GNP also possesses superior mechanical properties with a reported modulus of 1100 GPa and strength of 125 GPa . Therefore, the GNP is truly an ideal candidate for improving the properties of polymers as well as their FRP composites for multipurpose practical applications. Generally, the GNP is prepared by intercalating graphite either with metal ions or by acid treatment. This is further exfoliated by thermal treatment to yield GNP [12-13]. This 2D layered structure also possesses excellent electrical and thermal conductivity along with its high modulus. However, these properties strongly depend on the number of layers stacked in the GNP, the degree of crystallinity in the graphitic plane, their aspect ratio, and the order of stacking [14- 15]. Perhaps the most interesting application for this material is to use it as a filler in composite structures. They have already shown promising results in the field of polymer composites as sensor, thermal interface materials, and to create electrically conducting polymers [16-17].
There is a growing demand for low cost materials in the industry. With this rationale, there is extensive research in progress on polymer-based nanocomposites for a wide range of properties such as electrical, thermal, mechanical, and magnetic. The graphene nanoplatelet (GNP) is the novel nanofiller due to its exceptional functionalities, high mechanical strength, chemical stability, abundance in nature, and cost-effectiveness. Moreover, it possesses an extremely high-specific surface area which carries a high level of transferring stress across the interface and provides higher reinforcement effect compared to the CNT. Superior properties of graphene in comparison with those of polymers are also elucidated in polymer/graphene nanocomposites. They showed superior mechanical, thermal, gas barrier, electrical, and flame resistance properties [18-21]. Compared to the mechanical and electrical properties of nanoclay or other carbon-filler based polymer nanocomposites, graphene-based polymer nanocomposites possess better mechanical and electrical properties [18, 20-21]. The Graphene behaves as a better nanofiller than the CNT [22- 24]. The positive change in the nanocomposites’ physiochemical properties depends on the distribution of the graphene layer in the polymer matrix. It also depends on the interface bonding between them. Graphene reinforced polymer composite’s final properties are governed by the interface bonding between the graphene and the host polymer.
Dynamic mechanical thermal analysis (DMTA) was performed to observe laminates’ stiffness behavior as a function of temperature and study the effect of GNP on viscoelastic properties of the carbon fiber reinforced epoxy polymer (CFRP) composite. In general, storage modulus, loss modulus, and glass transition temperature of laminates in the glassy regions and vicinity of the glass transition temperature should be increased upon loading of the GNP. This behavior can be attributed to the improved dispersion and interaction between the GNP and the epoxy due to the formation of covalent bonds between them. Better dispersed GNP must dissipate energy due to resistance against viscoelastic deformation of the surrounding matrix.
Fracture toughness and thermal conductivity were improved by 43% and 14%, respectively, for 1 wt% and 2 wt% GNP-loaded epoxy nanocomposites compared to those in the neat system . An increase in dynamic mechanical properties up to 0.5 wt% loading of GNP with the improvement of about 16% in storage modulus compared to the reference one was also reported. However, the glass transition temperature (Tg) did not exhibit any significant improvement. The effect of the graphene on the linear coefficient of thermal expansion (CTE) is demonstrated by an improvement in the thermal expansion study where temperature was set below the glass transition temperature. The neat epoxy resin exhibited a CTE of approximately 8.2 ×10-5 °C-1, whereas 5 wt% graphitefilled epoxy composites exhibited a 31.7% reduction in the CTE value below Tg. Epoxy/graphene composites were prepared using an insitu process and their electromagnetic interference (EMI) shielding studies were also examined . Using 25 wt% loading of commercially available GNP, a 18% enhancement in thermal conductivity was observed with the GNP/Silicone composite prepared by the three-roll milling technique . Another study showed that due to a poor dispersion of the filler like neat graphite, expanded graphite, and graphene nanoplatelet in an epoxy matrix, increased the thermal conductivity slightly for the integration of GNP and decreased if the filler content is increased beyond 0.6 vol% [28-29]. Study of non-covalent functionalization of graphene sheets dispersed in epoxy recorded an 800% increment in the thermal conductivity using the 4 wt% filler loading. This is mainly because of the strong interaction between the matrix and the filler. This helps in reducing the interface thermal resistance and also the homogenous dispersion that happens due to the functionalization .
The surface modification of nanofillers helps rejuvenate the interaction between the matrix and the nanofiller ensuing a better dispersion quality and high performance. Better viscoelastic properties and enhanced interface between the two components of the polymer matrix can be obtained by applying modification through chemical bonding [31-33]. Amino-functionalized carbon nanotube (CNT) has been extensively used to improve the interfacial interaction with epoxy matrices [34-36]. In analogy to the CNT, covalent bond formation between the epoxy resin and the amine group present on the amino-functionalized GNP surface is anticipated [37-38]. The functionalization performs two simultaneous actions to facilitate the interfacial bonding with the matrix and accommodating graphenic sheets at the molecular level which are highly desirable. Direct impact of well dispersed graphene and improved interfacial bonding on the mechanical properties is studied and compared with theoretical predictions .
There have been a number of studies on mechanical, electrical, and thermal properties of exfoliated graphene/graphene oxide/ GNP reinforced polymeric composites. However, there is no study reported in the open literature on the effect of amino-functionalized GNP on viscoelastic and thermal properties of FRP composites. The wide range of attractive properties and increasing use of these nanophased composites in important areas of industries and the insufficient data in the relevant field have led the authors to select this research project. In this study, amino-functionalized GNP reinforced carbon fiber/epoxy nanocomposites were manufactured using a combination of sonication and 3 roll mixing process. DMA and TMA were performed to investigate the effect of GNP on viscoelastic and thermomechanical properties of carbon fiber/ epoxy composites. Resultant outcomes containing different wt% of GNP loading were then compared with those of the conventional carbon fiber/epoxy composite.
Materials and Methods
The matrix used in this study is a two part system manufactured by Miller Stephenson Chemical Company, Danbury: Part A is EPON 828 (Diglycidyl Ether of Bisphenol A (DGEBA), which is a low viscosity liquid epoxy resin manufactured using difunctional Bisphenol A and epichlorohydrin, and Part B is Epikure 3223, a Diethylenetriamine (DETA) used as a curing agent of epoxy resin. Carbon fabric of 8-harness satin weave purchased from US composites was used as reinforcement to fabricate laminates using the compression hot press technique. The GNP functionalized with amine groups (–NH2) was received from Cheap Tubes Inc, Vermont, USA. The GNP consists of small stacks of graphene. The GNP had an average thickness less than 5nm and specific surface area about 700 m2/g. The GNP was covalently functionalized by amine (-NH2) in order to achieve the required exfoliation and dispersion. The concentration of functional groups was less than 7%.
First, pre-determined amount of GNP (0.1-0.5 wt%) was mechanically mixed with epoxy resin Part-A by a mechanical stirrer for 4-5 minutes. The mixture was then put into a sonicator for 1 hour at 35% amplitude and 40s on/ 20s off cycle pulse mode. To avoid premature polymerization, this mixture was placed in a cooling bath. The sonicated mixture was then passed through three rollers to further improve the dispersion of GNP. In this process, GNPs were further de-agglomerated and uniformly dispersed in resin by the induction of a high shear force in the mixture. The gap space was incrementally reduced from 20 to 5 μm between the rolls and multiple passes were used. The speed ratio of the three rollers was 1:3:9 with a maximum speed of 140 rpm. The Epoxy-GNP mixture was then mixed with the curing agent Epikure 3223 according to the stoichiometric ratio (Part A: Part B = 12:1). The mixture was then placed in a vacuum oven at 40 °C for 10 minutes to ensure the complete removal of entrapped bubbles and thus reduce the chance of void formation. Nanophased carbon fiber reinforced polymer (CFRP) composites were fabricated by employing a combination of hand lay-up and compression hot press techniques. Carbon woven fabrics were stacked into eleven layers maintaining their parallel orientation. Modified epoxy resin was smeared uniformly on each fabric layer using a brush and a wooden roller. The stack was then wrapped with a bleeder cloth and a nonporous Teflon cloth. Finally, the stack was placed on the platen of the hot press where pressure and temperature were controlled precisely to make sure maximum wetting of fabrics with matrix and compaction of the layup as well as curing. Temperature was kept at 60 °C for 1 hour to attain enough flow of resin at a lower viscosity as compared to the room temperature and at the same time not to let it flow out of the layup. Temperature was then ramped to 100 °C and maintained for 1 hour to obtain the completely cured carbon- epoxy composite. Similarly, the conventional carbon/epoxy was manufactured using the compression molding process. Samples were cut and prepared from various portion of the panels for DMA and TMA tests according to ASTM standards to investigate the effect of amino-functionalized GNP on viscoelastic and thermal properties of these composites.
Dynamic mechanical analysis (DMA): DMA was performed with a TA Instruments dynamic mechanical analyzer (Model Q800) according to the ASTM D4065-01 standard under a dual cantilever beam mode with a frequency of 1 Hz and an amplitude of 15 μm. The temperature was ramped from 30 °C to 200 °C at a rate of 10 °C/min. A minimum of five samples of each category were tested.
Thermo mechanical analysis (TMA): TMA tests were carried out on a TA instruments thermo mechanical analyzer (Model Q400) operating in an expansion mode at a heating rate of 10 °C/min from 30 °C to 200 °C. A minimum of five samples of each type were tested, and the CTE for each of those samples was determined before the glass transition temperature.
Results and Discussion
Dynamic mechanical analysis (DMA)

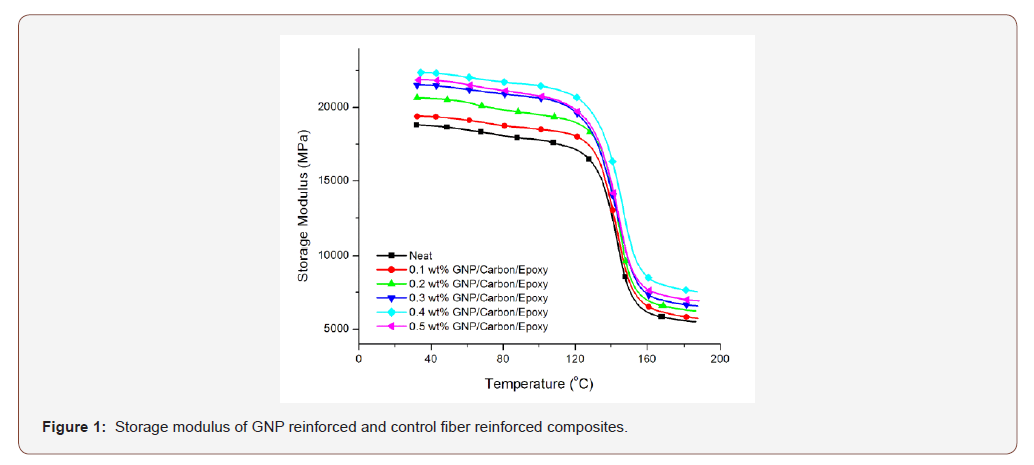

Various temperature dependent properties of laminated composites such as storage modulus, loss modulus, and tanδ were obtained by performing dynamic mechanical analysis test. These properties characterize stored elastic energy and the energy dissipated during mechanical straining both of which are highly affected by fillers characteristics i.e. geometry, weight fractions, dispersion state of fillers in matrix as well as adhesion between the reinforcement and the matrix. Figure 1 shows the temperature dependence of storage modulus where temperature is in the range of 30-200 °C. For different laminates, storage modulus at 30 °C has been presented in Table 1 and the addition of GNP has resulted in significant improvement. The storage modulus was improved up to 19% with the addition of the 0.4 wt% of GNP at 30 °C. This improvement is due to possible enhanced interaction between the well dispersed nanofiller and matrix. More sites for GNP/polymer interaction might have been provided by a better dispersion of the GNP at the 0.4 wt% , whereas, the formation of a strong covalent bond shown in Figure 2 is due to the presence of amino-functional groups of GNP and its reaction with the epoxy. Hydrogen atoms in amine groups of DETA molecule (hardener) form self-crosslink with each other through reaction with the epoxide group of DGEBA resin molecules in case of control epoxy samples. In case of nanophased samples (Figure 2), at first the interfacial reaction between amine functional groups of GNP and epoxide groups of DGEBA resin takes place by ring opening reaction while EPON 828 (Part A) and GNPNH 2 are mixed together. This modified Part-A establishes a strong covalent bond between the epoxy and the GNP upon further mixing with Part-B of epoxy resin and thereby crosslinking sites and interfacial bonding are boosted.

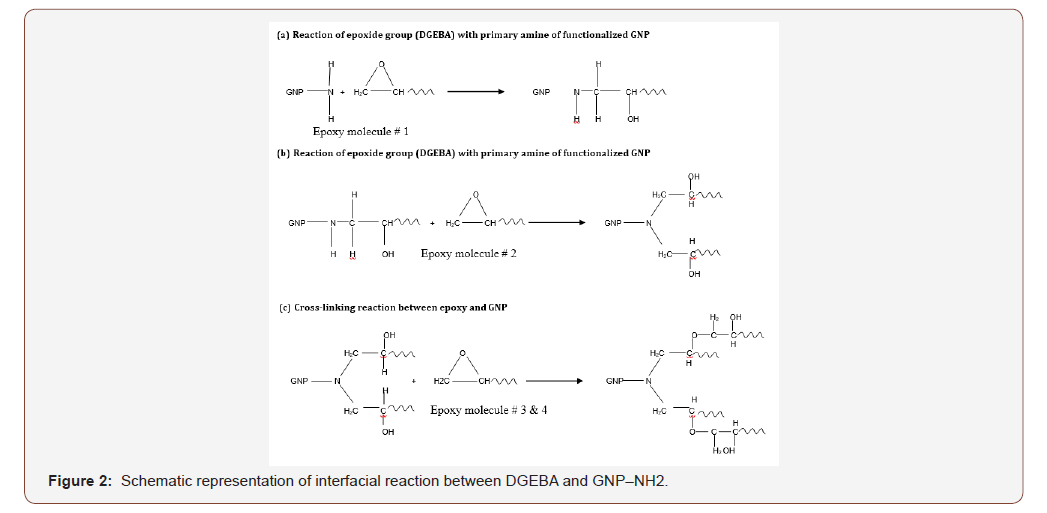

The epoxy chain molecular motion around GNP might have been abridged by the formation of covalent bond and the enhanced interaction. This abridgement may have resulted in a significant change of elastic and viscous properties in nanocomposites. However, at the 0.5 wt % loading, the observed decrease in storage modulus can be attributed to an increase of agglomeration of the GNP and this increase of agglomeration reduces the crosslinking sites. Therefore, the storage modulus decreases as a result of possible increased molecular motion and movement of chain. The covalent bond between the epoxy and the GNP is the obvious factor in the improvement of thermo-mechanical properties.

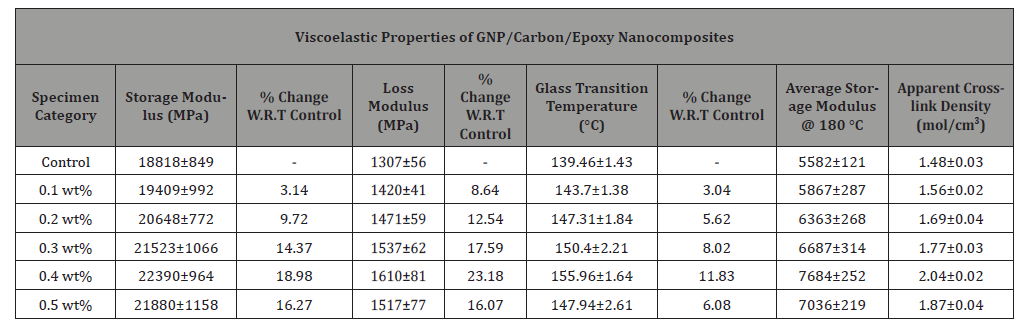

Table 1:DMA results of control and GNP reinforced carbon fiber/epoxy composites.
Loss modulus of control and nanophased carbon fiber/ epoxy composites is presented in Figure 3. Loss modulus for nanoparticles reinforced carbon fiber/epoxy composites is much higher than the control one. The CFRP composite reinforced with the 0.4 wt% GNP demonstrated the highest loss modulus; thus, the highest amount of energy is dissipated while three-point bending load is applied. When the load is applied, nanoparticles try to hold the laminates in place; thereby more amount of energy is required to deform the sample. Thus, nanoparticles reinforced composites required a higher load and loss modulus increased for nanophased composites.
The storage modulus drops sharply above 120 °C because of the easier movement of the polymer chain. This temperature region with such a behavior is roughly termed as glass transition temperature (Tg). A substantial improvement in the rubbery plateau modulus was observed for the carbon/GNP/epoxy composite. The average rubbery plateau modulus at 180 °C is measured as 5582, 5867, 6368,6687, 7684, and 7036 MPa for control, 0.1, 0.2, 0.3, 0.4, and 0.5 wt% GNP- infused composites, respectively. The operating region lies before the Tg and the region beyond the Tg is termed as the rubbery plateau. Reinforcing effect by the GNP, limited mobility from enhanced polymer-nanofiller interaction and augmented crosslink density are the factors which affect this enhancement of the rubbery plateau modulus because it improves the composite performance at a higher temperature. This increase in rubbery plateau modulus indicates an enhancement of the Tg through increased crosslink density of the polymer . Calculation of crosslink density was carried out using the DMTA test results. Crosslink density of epoxy composites can be calculated by using the following relation according to the theory of rubber elasticity:
Where λ is the crosslink density expressed in moles of elastically effective network chains per cubic centimeter of sample, G is the storage modulus in the rubbery region at a temperature well above Tg , R is the universal gas constant, and T is the absolute temperature at which experimental modulus was selected. The results show that the crosslink density increased with an increase of storage modulus in rubbery region. Figure 4 shows apparent crosslink density at different weight percentages of GNP loading. Crosslink density increased up to a loading of 0.4 wt% GNP and then decreased. Hence, maximum rubbery modulus in the 0.4 wt% GNP reinforced composite has maximum crosslink density; thus, it maximizes the Tg. The decrease in crosslink density at 0.5 wt% is again can be attributed to a poor GNP dispersion that has reduced the crosslinking sites.

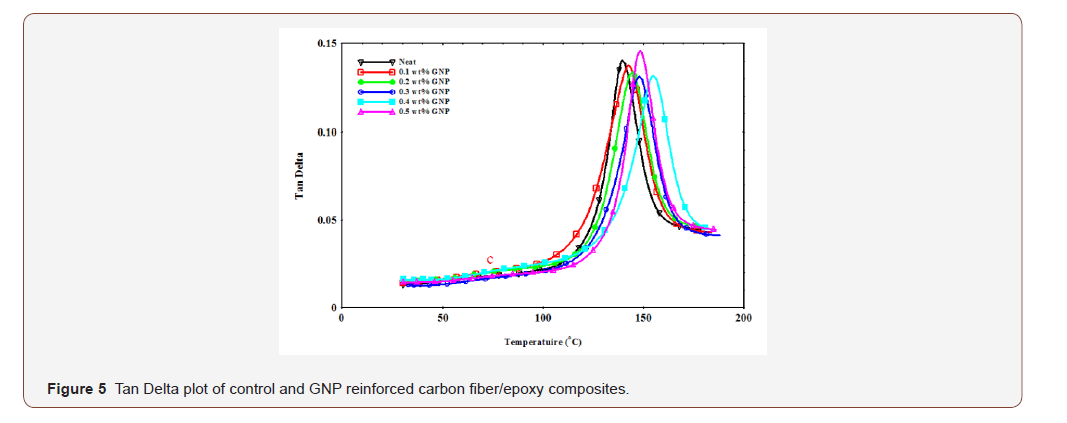

tanδ vs. temperature relationship in Figure 5 demonstrates the effect of GNP concentration on damping properties of laminated composite. Even a small addition of GNP, the Tg is improved significantly. The rise in Tg in the polymeric system is predominantly affected by the amount and dispersion of the GNP, degree of crosslinking, and interfacial interaction. In our study, the dispersed GNP has restricted the molecular motion. Consequently, there has been a positive shift in the Tg. The maximum Tg is obtained in the 0.4 wt% sample. Further information about the mechanical properties and relaxation behavior of samples can be obtained from the height and width of the tanδ peaks. Average peak height of tanδ curves measured was 0.142, 0.139, 0.136, 0.132, 0.129, and 0.131 for control, 0.1, 0.2, 0.3, 0.4, and 0.5 wt% GNP-loaded samples, respectively. Gradual decrement in the tanδ peaks with respect to the concentration of the GNP is observed up to the 0.4 wt%. The reduced mechanical loss due to lower friction among molecular chains and enhanced interfacial adhesion among the fiber-matrix-GNP are indicated by a lower tanδ height. For 0.5 wt% samples, interfacial adhesion between the nanofiller and the matrix is somewhat lower and molecular mobility is higher because of the presence of agglomerates. These effects have been indicated by the maximum decrease of tanδ peak for the 0.5 wt% GNPloaded sample compared to the control one. Moreover, broader distribution of relaxation time is the byproduct of enhanced filler matrix interaction, which interprets the significant widening of the tanδ peak of the composite sample with an addition of the GNP. Relaxation of polymer chain can be disturbed by the GNP in their neighboring areas. However, the nanofiller cannot disturb relaxation of polymer chains which are far away from them. Such variation in the GNP concentration affects the formation of crosslinking and the relaxation behavior [41-42].
Thermo-mechanical analysis of CFRP composites
The coefficient of thermal expansion (CTE) is an important thermomechanical property of polymeric composites for engineering applications. Most of the polymeric materials have a high CTE value which limits their applications. However, an incorporation of a small amount of nano-scale filler materials in the polymeric matrix can significantly reduce the overall CTE of carbon/epoxy composites. A low CTE value is most desirable to ensure good dimensional stability. In thermo-mechanical Analysis (TMA), the dimensional change due to the temperature variation is usually measured in the thickness (transverse) direction of the sample. To measure the CTE, square specimens measuring 10–12 mm in length and 3–4 mm in thickness are subjected to a small load via a vertically adjustable quartz glass probe. The probe is integrated into an inductive position sensor. If the specimen expands or contracts due to heating and cooling, it moves the probe allowing the dimensional change to be measured as a function of temperature.
The resin as a binding material typically exhibits a much higher CTE than that of the fiber. In general, the fiber is thermally as well as mechanically anisotropic. Hence, the CTE for FRP composites varies in the transverse as well as the perpendicular (longitudinal) directions depending on the types of the fiber and resin, fiber volume fraction, fiber orientation, void volume fraction, moisture effect, and resin viscoelasticity. Fiber reinforced polymeric (FRP) composites consist of unidirectional fibers or woven fabrics and there is no fiber in the transverse direction to support the load (Figure 6). The absence of transverse fibers/fabrics results in an extremely high CTE in the transverse direction compared to that in the longitudinal direction. In essence, the transverse CTE is mainly due to the resin. On the other hand, the longitudinal CTE of the composite is very low and close to the CTE of the virgin fiber/fabric. This is attributed to the much higher Young’s modulus of the fiber/ fabric compared to that of the matrix material.
The high strength and elastic modulus, and low CTE combined with the high aspect ratio of the GNP make them ideal candidates for nano reinforcement in polymer matrix composites. Since the GNP has almost zero CTE, the addition of GNP with polymer chain may end up with an overall reduction in the CTE of the composite. The improvement in the dimensional stability in the transverse direction for the functionalized GNP can be attributed to the uniform dispersion of the GNP throughout the matrix, and the ability of the functional groups to form covalent bonds with the matrix as well as enhancement in the crosslinking density during the curing process of the matrix. Moreover, the GNP is expected to have very little influence on the CTE in the longitudinal direction due to the fiber being the dominant load-bearing material in that direction.
Hence, the GNP is expected to be dominant in determining the shrinkage or expansion of the composites in the transverse direction measured in current study.

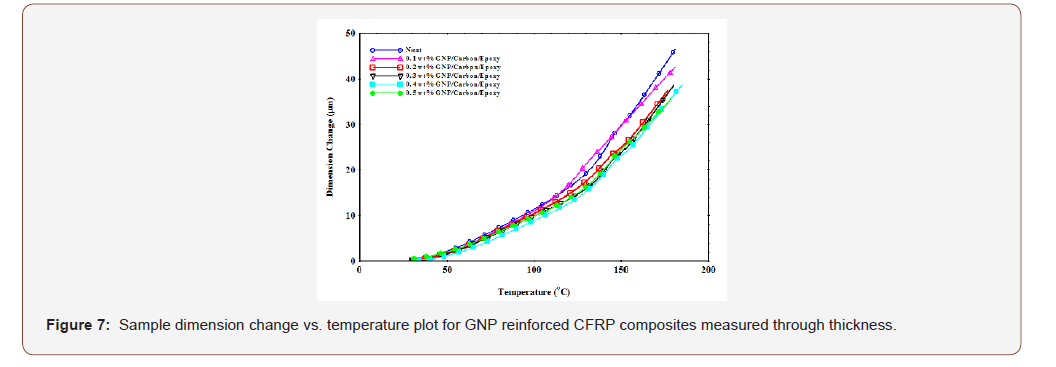

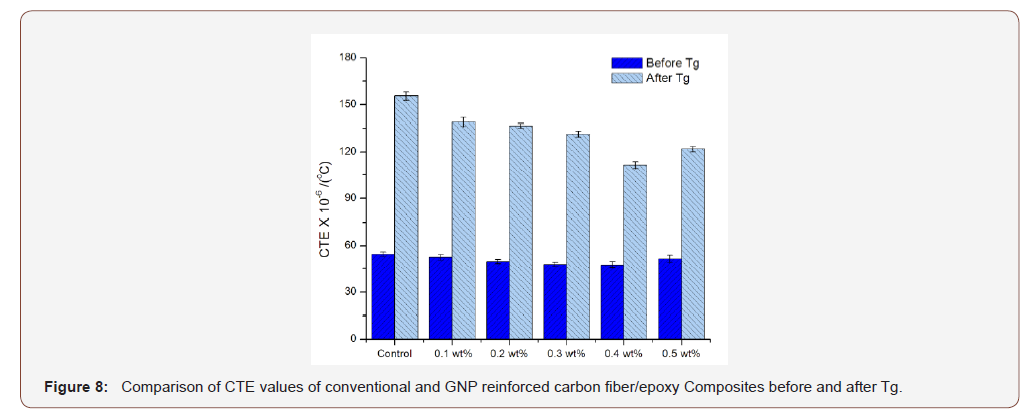

Figure 7 presents the change in sample dimension in transverse direction as a function of temperature. Figure 8 compares the CTE values of control, 0.1, 0.2 0.3, 0.4 and 0.5 wt% GNP reinforced laminated composites in the temperature range of 30-180 °C. The effect of GNP on the transverse thermal expansion behavior of composites has been summarized in Table 2. The average coefficient of thermal expansion of carbon/epoxy composite was measured as 54.47 ppm/°C. The addition of the 0.4 wt% GNP reduced this value due to the additional reinforcement with the GNP in the system. The addition of 0.4 wt% GNP reduced this value to 47.6 ppm/°C which represents a decrease of 12.61%. The CTE values of 0.1, 0.2, 0.3 and 0.5 wt% samples follow the trend seen earlier, where the 0.1 wt% sample lowers the CTE value slightly (3.61%) and the 0.5 wt% sample lowers the CTE value by 5.34%. The improved dispersion of the GNP in the matrix facilitates to enhance interfacial reactions and forms covalent bond between them. This covalent bond induces different crosslinking regions into the epoxy matrix. Generally, after mixing epoxy Part A and NH2– GNP, the interfacial reaction takes place between amine functional groups of GNP and epoxide groups of DGEBA resin. Two ring opening reactions followed by a cross-linking reaction create interlocking structure in the resin blend those hindrances the mobility of polymer chains in the matrix system. Thus, the reduction of the CTE after an addition of GNP was due to its improved dispersion in the epoxy and the reduced segmental motion of the epoxy matrix. Thus, improving the dimensional stability of the polymer matrix leads to improved dimensional stability in the resultant composite . Moreover, well dispersed CNT can align the polymer chain along their axial direction, thus can easily get associated with the polymer molecule and prohibit its thermally induced movement resulting in a reduced CTE value . The addition of 0.5 wt% GNP resulted in slight increase in the CTE compared to that of the 0.4 wt % sample, but still low in comparison with that of the control system. This higher value of CTE can be demonstrated by the aggregation formed at a higher loading as explained in earlier sections.

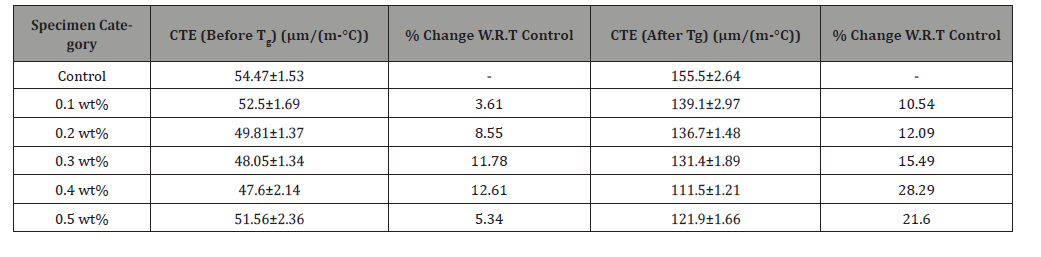

Table 2:TMA results of control and GNP reinforced carbon fiber/epoxy composites through thickness.
Nanoparticles reinforcement enhances almost all kinds of properties of CFRP composites evaluated through experimental characterization. The 0.4 wt% GNP reinforced CFRP composite exhibited the best properties among the nanoparticle reinforced composites. The significant conclusions drawn from this study are given below:
• The storage modulus was increased by about 19% at the 0.4 wt% GNP loading in comparison to the neat epoxy. The glass transition temperature and loss modulus had also been improved with the addition of the GNP.
• Coefficient of thermal expansion through the thickness direction decreases about 13% and 22% before and after the glass transition temperature, respectively, due to the 0.4 wt% GNP incorporation in the system.
The authors acknowledge the Air Force Research Laboratory Munitions Directorate, Eglin AFB, FL 32542, USA (Grant No. FA8651-14-1-0001 and FA8651-14-1-0008) for their financial support to carry out this research work.
Conflict of Interest
Authors declare no conflict of interest.
