Assessment of Groundwater Contamination and Bioaccumulation Risks Due to Mining-Induced Land Deformation in Southern Nigeria

There is a need for an assessment of groundwater pollution potential and possible buildup of contaminants in Southern Nigeria, given the region’s significant reliance on agriculture and freshwater sources. Consequently, the research findings of studies show that mining has detrimentally influenced water quality since lead and cadmium, for example, have been detected in water samples. These concentrations are above the WHO safety standards for human consumption, thus presenting human and agricultural products’ safety hazards [1, 2]. Thus, there is a body of evidence that human activities, especially mining impact the quality of groundwater and can cause potential health risks to the population of the area [3, 4]. Furthermore, it has also been established that agricultural activities contribute to high levels of nutrients, and consequently, cause high incidences of groundwater pollution [5]. Altogether, such factors pose a great threat to food security and the welfare of the rural people in particular and the society as a whole in general. That is why, special attention should be paid to the protection of water and crops in the region, which can be contaminated by various substances [4, 5].

The findings presented here affirm that the properties to smallscale miners in Southern Nigeria have a considerable impact on the environment. Such activities have caused land deformation and in particular subsidence and surface cracking have been observed. The consequence is the destabilising of the terrain and the interference with the natural watershed and rains that are essential in sustaining groundwater quality [6, 7]. These excavation processes often lead to the informal discharge of various toxic heavy metals for example lead and barium into the environment. This is a big risk to communities that are located close distance to the plants and industries [8]. Pollutants penetrate the aquifers that provide drinking water especially to rural dwellings hence, causative agents of diseases [9]. The unsupervised and often unsafe methods of mining further contribute since such mines violate environmental measures, which in turn raises the chances of polluting natural resources [10]. These environmental and health risks should be mitigated at the earliest instance possible since current communities rely on groundwater for daily use. The inability to afford treated water also further enhances the vulnerability of such populations as explained by [10].

The farming system in Southern Nigeria is comprised of smallholder farmers and because crops are in close contact with the mining sites, the land is at a higher risk of bioaccumulation. Researches have in many ways shown that lead, cadmium, arsenic, and many other forms of heavy metal pollute the soil and water resources leading to the accumulation of the metals by crops like Telfairia occidentalis and Talinum triangulare. These crops have revealed higher concentrations of these metals than the acceptable WHO/FAO permissible limit [11]. In addition, cross-sectional studies carried out at artisanal mining areas showed that hazardous metals in common food crop varieties cause bioaccumulation, thus making them potentially dangerous to human health when ingested [12]. Consumption of such crops leads to chronic diseases such as kidney diseases and neurological disorders [13]. In addition, the animals that are usually found in such areas or those that drink such water are also affected and the toxins produced from them may find their way into the food chain through animal products [2]. Thus, carefully coordinated surveillance and outstanding intervention measures are essential to protecting the population in this area.

Land alteration, especially due to the activities of mining, affects considerably the movement and persistence of bad things in the environment. Ground changes due to mining, such as subsidence and fractures create areas in which pollutants, including heavy metals, spread more quickly. For instance, subsidence may cause the formation of depressions that capture any incoming water and contaminants concentrating them, and deeper infiltrating into aquifers [14]. In addition, the making of soil cracks allows for contaminant flow around natural filtration processes that might normally restrain pollution [15]. It has great impact on the movement and persistence of such harmful substances in environment resulting from alteration of land, particularly as a result of mining activities. The mining caused ground changes, and they disrupt natural groundwater flow, making that water more effective at spreading pollution like heavy metals. For instance, subsidence produces depressions in which water and contaminants accumulate and then concentrate before being further infiltrated into aquifers [14]. Additionally, soil cracks that form allow contaminant flow around natural filtration processes that would normally reduce pollution [15].

In Southern Nigeria, it is highly essential to quantify the level of contamination of groundwater and health risks associated with it given the poor health care infrastructure of the country. Pervasive occurrence of heavy metals such as lead (Pb), arsenic (As) and cadmium (Cd) in groundwater were studied in several numbers and usually have exceeded the limits established by the World Health Organization (WHO). This is a massive public health issue for at risk populations such as children and the elderly [16, 17] This type of contamination may have serious adverse effects on human health, including heavy metal poisoning, and the exposure of individuals to this type of pollutant may be prolonged. [18] documented this can become a difficult condition to treat once a toxic level has been reached. Also, heavy metals from mining activities are influencing the accumulation of heavy metals in soil and water and later affecting the ecosystems, leading to biodiversity loss [19-21] have reported that heavy metals like lead (Pb), cadmium (Cd), mercury (Hg) and arsenic (As) are bioaccumulating in mining affected regions of Southern Nigeria, which are a big environmental and health hazard. The degradation of the environment to which communities rely for their survival for their livelihood poses a major threat to food security. This highlights the urgent imperative of sound environmental management and regulation against exposure to the hazards under discussion [22, 18].

The aim of this review is thus to discuss the current state of knowledge regarding the influence of mining induced land deformation (including, for example, subsidence or fracture in the surfaces) on the contaminancy of groundwater and the bioaccumulation of heavy metals. This study is concerned with phenomena known to exist in southern Nigeria but which require further study, and research gaps. Further, the review provides geotechnical strategies for minimising groundwater contamination risk, and presents practical strategies to reduce land deformations and control pollutant pathways in mining regions. The end effect is that water resources will be protected and environmental health hazards will be decreased.

A comprehensive and systematic approach to conducting a review was used using a number of databases. It was comprised of Scopus, Google Scholar and Web of Science. This study aimed at evaluating the possibility of groundwater contamination and bioaccumulation due to land deformation of mining induced nature in southern Nigeria. To identify important peer reviewed studies looking at the effects of heavy metals, like lead, zinc, cadmium and mercury, we used a combination keyword search that includes “mining induced land deformation” and “groundwater contamination.” Studies which were considered to apply to Southern Nigeria and mining related contamination and which used rigorous methodology within the last decade (10 years) (2014) are considered. We excluded those which were unrelated to mining or focused on other regions.

The data extraction process concentrated on the following aspects: the location of study areas, geological properties of the areas to be studied, type of mining activities that were carried out the routes of contamination of the heavy metals detected. Although the study’s limitations, including lack of long-term monitoring, are recorded, the key findings documented contamination levels which exceed WHO and FAO standards. A qualitative synthesis was performed to identify common contamination pathways: leaching, and runoff. The heavy metal concentrations were quantitatively compared against international standards. A meta-analysis was attempted when data were available in sufficient quantity. Risk assessments were also conducted to estimate health risks associated with groundwater contamination.

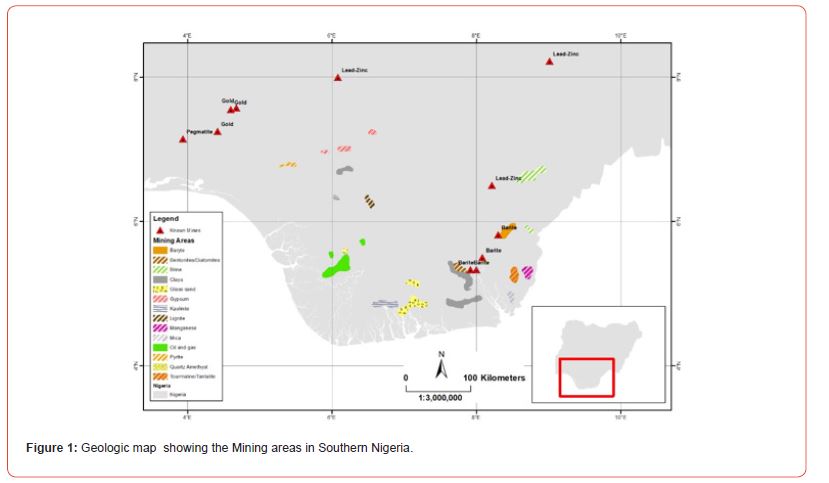

Mining Activities in Southern Nigeria: An Overview

Southern Nigeria has traditionally known of its diverse Geological and Mineralogical environment and thus encouraged mining activities (figure 1) (table 1). In their assessment of heavy metal pollution in the gold mining areas of southwestern Nigeria, [23] were carried out. The information includes pictures of leaching from mining sites, but without seasonal data. On the other hand, the work of [24] was directed towards the exploration of barite mining in Cross River State. Of particular value was their understanding of weathering as a conduit for contamination of mine tailings. No surface soil samples were taken, however. In a further study, [25] undertook study in soil and water contamination from lead and zinc mining in the south-eastern region of Nigeria (Ishiagu) with particular consideration for land subsidence and soil leaching through soil channels. But the authors did not show long term monitoring data. Another study [20] followed, identifying lead-zinc mining in Abakaliki and seepage through aquifers. In addition, the scope of the study was limited by the lack of control sites.

The study done by [26] also demonstrated that investigations on abandoned lead-zinc mines in Enyigba revealed subsidence of the mines. Nevertheless, the data set had surface water samples only. According to [21] vibration from mining activities to the earth due to seismic waves and runoff were observed in the Ebonyi State. [27] investigated the leaching of pegmatite minerals into groundwater in the vicinity of Ibadan but without specific groundwater analysis. [28] evaluated the effect of mining on the Benue Trough; formation of sinkholes and contamination of groundwater. In addition, studies by Ochelebe et al. (2020) showed environmental impacts from surface runoff from barite mining in Akamkpa and Biase.

Table 1: Case studies of Mining activities in southern Nigeria.

Mechanisms of Mining-Induced Ground Subsidence

The occurrence of mining induced ground subsidence in Southern Nigeria has been extensively researched, to reveal different geotechnical mechanism in different geographical areas.

In Ishiagu, South-east part of Nigeria, as reported in [25] subsidence has been observed as a result of mining lead and zinc from carbonate hosted deposits which weaken the support strata due to extraction of mineral resulting to ground collapse. While there was no long term monitoring data to add to this picture, this collapse resulted in significant leaching through soil and water channels. Similarly, in Enyigba, [26] underscored the importance of mine collapses in cracks in the crystalline basement rocks in leading to subsidence during Lead and Zinc extraction. The collapse allowed the seepage from the abandoned mines and the collected data was limited to analysis of surface water samples. [28] also identified the occurrence of sinkholes caused by mine collapse in fractured sedimentary rocks within the Southern Benue Trough during lead-zinc mining and generated massive ground subsidence. Contamination of groundwater through permeable soils was exacerbated by the weakening of subterranean voids. [21] have documented an additional contributor to ground instability and subsidence due to seismic vibrations from lead zine mining activities in Abakaliki Anticlinorium and runoff from mining operations in Ebonyi State. These studies conclude that subsidence results from the collapse of underground support structures and weakening of overlying strata, frequently causing environment risk, for example, groundwater contamination.

Pathways of Groundwater Contamination

Mining activities deform the land resulting in the formation of fissures and fracture which may become a vital passage way for the leaching of heavy metals into the groundwater (figure 2). In this study it was found that gold mining has contaminated groundwater in schist complexes via leaching in southwestern Nigeria, although subsidence mechanisms were not investigated in depth. This highlights the critical role played by fractured rock systems, which allow metal to migrate into aquifers. This is similar to findings by [24] in Cross River State who noted that leaching of heavy metals from barite mine tailings into the soil as well as to groundwater was enabled by weathering of barite mine tailings in sedimentary terrains even though the limitations of their study was only surface soils. [25] found that soil subsidence induced by mining of leadzinc ore to be a leading cause of groundwater contamination in Ishiagu, Southeastern Nigeria. We saw that subsurface structures crumbling caused pathways leading for leaching through soil and water systems. But since there was not long term monitoring data, a full understanding of how these pathways operate was not possible. Investigation of the Abakaliki anticlinorium by [20] has shown that porous aquifers are vulnerable to seepage from lead and zinc mining operations. Like in Enyigba where [26] observed seepage from abandoned lead zinc mine collpases and fractures as part of mine processes through which heavy metals entered groundwater. However, it should be stressed that this study only assessed the phenomenon on the surface water samples and not for all water.

[28] found that sinkholes created by lead-zinc mining collapses in the Southern Benue Trough lead to direct paths for contaminants to enter groundwater through permeable soil. Similarly, [32] noted that barite mining on surface runoff sites of Akamkpa and Biase have irrigated groundwater contamination. While there is an absence of pre-mining baseline data to comprehensively assess, the process of premining has been successful. Also, [30] look at the impacts of gold mining in Ogun State and found out that leaching from abandoned gold mining sites worsens the risk of groundwater contamination. In Abakaliki, a southeastern region of Nigeria, [20] carried out a hydrogeochemical analysis. The seepage pathways developed through porous aquifers due to lead-zinc mining were responded with this analysis. The issue of subsidence was not specifically addressed as it is a reasonable assumption that the induced fractures within deformation from mining are playing a role in transmitted heavy metals groundwater. [28] also recorded the role of ground instability in contaminating the groundwater through the recorded sinkholes that occurred due to mine collapse in the Southern Benue trough. Contaminants from lead-zinc mining have seeped into groundwater through permeable soils by passing through these sinkholes.

[30] studied impact of abandoned gold mining site on Ogun state Southwestern Nigeria. While little was known about how subsidence occurred, the study found that abandoned sites increased the likelihood of heavy metal leaches from fractures and cracks in the rock, which further contaminated the local groundwater quality. In addition, [33] stated runoff from gold mining sites in Southwestern Nigeria, which caused erosion and sedimentation to contaminate groundwater.

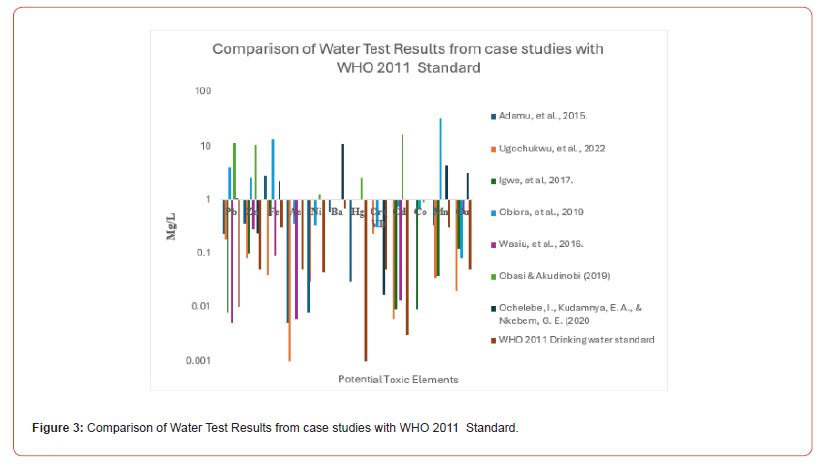

The water and soil contamination levels in mining areas of Southern Nigeria were compared to the permissible limits set by World Health Organization (WHO) and the Food and Agriculture Organization (FAO) with respect to heavy metals such as lead (Pb), cadmium (Cd) and iron (Fe) (table 2). A number of studies have found lead concentrations in water tests consistently to exceed the WHO standard concentration of 0.01mg/L (figure 3). [20] reported a shocking concentration of 11.42 mg/L, while [31] found 4 mg/L, which is several hundred times overload than where it is allowed. The quantity of lead is substantial in addition to the high levels of cadmium being reported by [20] which exceeded the permitted limit (0.003 mg/L) with 15.67 mg/L. Also, other metals next to this, including iron, have potentially harmful concentrations to human health. For instance, [31] recorded concentration of 13.951 mg/L, more than the WHO guideline (0.3 mg/L). However, these elevated levels are a major health hazard and can include neurological damage, organ failure, and cancer. There is the accumulation of these metals over time through the consumption of contaminated water or affected fish or, crops.

Table 2: Contamination levels of heavy metals in water from the included studies.

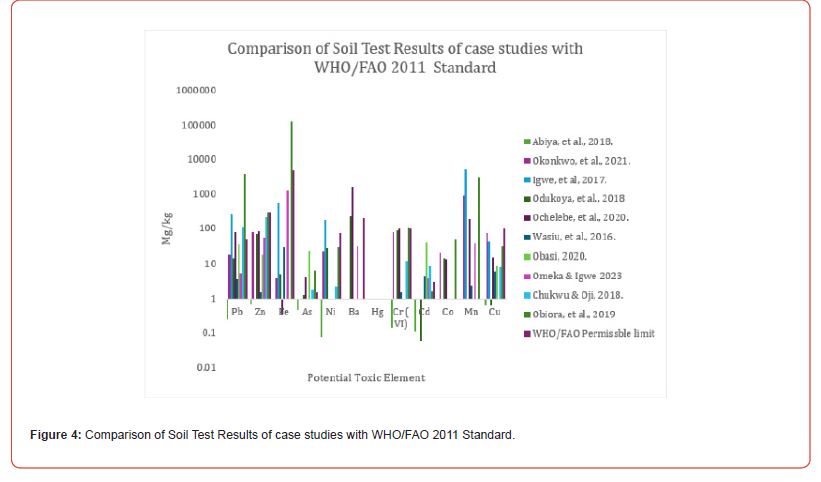

Similarly, soil contamination levels are a major issue in soil analysis (table 3). According to the Food and Agriculture Organization (FAO) and World Health Organization (WHO), there is a standard for lead in soil as 100 milligrams per kilogram (mg/kg) (figure 4). Nevertheless, [31] found lead levels above this threshold, at 3,870 mg/kg. This represents a serious extensive contamination ascribed to mining activities. Likewise, Zn with a limit of 300 mg/ kg, had also correlating elevated values in numerous studies, such as 302 mg/kg reported by [26]. This is of particular concern as arsenic (As), a known carcinogen, exceeds the 1.5 mg/kg limit and as this has been reported by [29] at 4.34 mg/kg. In addition, the cadmium concentration in the soil is high, while [26] recorded a value of 40.51 mg/kg, exceeding the allowable limit of 3 mgd/kg.

Table 3: Contamination levels of heavy metals in soil from the included studies.

Soil and water contamination resulting from mining activities are examined in different African regions and the types of pollutants, their origins and extent of land degradation are examined. Pb, Zn, Fe, and Cr(vi) are the most commonly identified contaminants in water samples from several studies. [24] and [31] reported lead level of 0.226 mg/L and 4 mg/L respectively, both are very higher than WHO standard of 0.01 mg/L. Research has shown that in mining areas in Ghana, concentrations of lead (Pb) in the Bonsa River exceed 1.5 mg/L, particularly in the Bonsa River. In this region, heavy metal analysis revealed high concentrations of pollution [35]. Additionally, investigations in the Nsuta manganese mining region indicated exceedingly high levels of Pb in mine pit water, which also leads to contamination of groundwater [36]. As documented by [20], contamination levels were recorded to be exceedingly elevated; pH= 3.2, Pb = 11.42 mg/L, and Cr (VI) = 14.6 mg/L clearly exceeding WHO limits. On the contrary, [28] also recorded Pb contents of 0.008 mg/L, values that were within permissible limits and guided for less serious contamination in their investigation area.

Pb and Zn contamination of surface water is a problem of common occurrence in many African regions due to mining activities. For example, as reported in [31], Zn levels in Nigeria at 2.612 mg/L exceed the WHO standard of 0.05 mg/L and similar is found in the Copperbelt Region of Zambia from high contents of trace metals especially zinc and arsenic. High levels of Zn have been found in studies to be heightened in areas affected by mining due to runoff from mining operations and tailing facilities [37]. For instance, some mining affected areas have recorded arsenic content exceeding 4.13 mg/l/ accounting for one of the big impacts to the environment [38].

Pb and Cr(VI) have been well documented as the most commonly occurring contaminants in soil. Concentrations of Pb reported as alarmingly high by [28] and [31], exceeded the WHO limit of 100 mg/kg at 267.195 mg/kg and 3870 mg/kg respectively. The studies in the Kabwe mining region of Zambia observe really high soil Pb concentration over 3000 mg/kg which is accounted to improper disposal of mine tailings and to the dust fall out from the mining operations [39, 37]. Reports of elevated Cr(VI) levels, like 12.66 mg/kg, higher than the allowable limit of 100 mg/kg, have been made in other areas too [40]. Health concerns have been raised on how to address soils and crops contamination in the Zambian Copper belt affeted by mining activities [37, 40]. Similar heavy metal pollution issues are being faced in South Africa’s mining zones as a result of elevated chromium and other pollutants, as a result of which there is also broader regional environmental degradation by mining practices [41].

Lead (Pb), zinc (Zn), iron (Fe) and chromium (Cr (VI)) are among the common pollutants found in various parts of Africa where mining works take place or are associated with the operations, poor waste management and soil erosion. Regional mining practices and land disturbance affect the degree of contamination. As reported in [31, 28], in Southern Nigeria land subsidence is often correlated with increasing levels of heavy metals. On the other hand, in Eastern and Southern Africa including Tanzania and Zambia, high contamination levels occur respectively, Hg and As due to artisanal mining practices [42, 43].

Environmental and Health Implications

Groundwater contamination and heavy metals bioaccumulation pose serious environmental and health risks to mining regions of Southern Nigeria. The WHO/FAO defined limits of heavy metals such as lead (Pb), cadmium (Cd) and so on have also been found in the concentrations above the water test results. As a matter of fact, a study by [20] recorded lead level of 11.42 mg/L above the 0.01 mg/L limit and cadmium level of 15.67 mg/L above the WHO limit of 0.003 mg/L. Thirdly, studies such as [31] recorded raised levels of iron (Fe), ranging from 0.315 to 13.951 mg/L, above the acceptable limit of 0.3 mg/L and concerns also arise from very high arsenic (As) readings reported by [20] of 4.13 mg/L indicating that this value exceeds the WHO limit of 0.05 mg/L. This increased metal concentration in the water disrupts the aquatic ecosystems, causes bioaccumulation in fish and other aquatic life, which are important local community food sources.

The soil test results reveal significant amounts of heavy metal pollution chief among them lead (Pb) and cadmium (Cd). The WHO/ FAO recommended limit for soil lead is 100 mg/kg, stated in many studies but also shown to be greatly exceeded in [31] with a value of 3870 mg/kg. Studies by [29] and [27] show high concentrations of zinc (Zn) with levels of about 85.2 mg/kg and 81.67 mg/kg, respectively, which is beyond permissible limit of 300 mg/kg. [29] also reported arsenic (As), but at hazardous levels of 4.34 mg/kg. Long term health risks to human populations has resulted because these heavy metals accumulate into crops and livestock.

Heavy metals like lead, cadmium, arsenic, and iron accumulate on the food chain and pose great health risks for humans in communities which use contaminated water and soil for their sustenance. These metals can be hazardous to health arising from prolonged exposure as necessitated in several studies [44- 46]. These non-biodegradable metals persist in the environment, increasing the threat of long term exposure, which results in higher incidences of cancer and developmental problems in children [47], Jonson, et al. 2024. Additionally, during bioaccumulation, these metals become more concentrated throughout the food chain, which makes human health hazardous [45]. Because of this, it is important to undertake effective environmental monitoring and remediation as a way of reducing these risk and ensure that the mining regions of Southern Nigeria [44, 46] are protected from both the ecosystems and human health.

Mitigation Strategies

Mitigation strategies for mining-induced contamination in Southern Nigeria, as detailed in the attached document, can focus on three main areas: They include land reclamation, improved mining regulations and water treatment. Reclaiming the land should focus on stabilising subsided land and replanting indigenous vegetation to restore ecosystems and reduce pollutant pathways, for example in the cracks of the soil and aquifers. Successful examples in other developing regions, i.e. barite and lead zince mining areas, have shown the benefits from such practices to reduce heavy metal mobility. The improved mining regulations are essential. Risk mitigation can include enforcement of strict environmental monitoring and requires that miners use sustainable practices, like customised waste disposal and periodic testing of land, water and air. Particular importance is in regions such as Ebonyi and Cross River states where artisanal and small scale mining – which is often unregulated – has contributed greatly to contamination and land deformation.

There should be water treatment programs that are set up for contaminated ground water. By working in collaboration with industries, local governments could install purification plants to remove lead, cadmium and other metals from the water before it’s used in communities. After that, public awareness campaigns should be started to educate the residents on the health risk if you consume contaminated water and food, which can be done either written or orally. These could be workshops on safe agricultural practices and good waste management to prevent further bio accumulation of metals.

Limitations of the Review

Several limitations of the review research have to be acknowledged. A major limitation is that it relies upon available literature, which often does not provide comprehensive or long term data especially on seasonal variations in groundwater contamination. This restricts the depth of the review’s analysis to variations in contamination levels for which seasonality is not fully allowed. Furthermore, the research is also restricted to certain areas within Southern Nigeria where and case studies are available. Such bias is created because areas not studied may not suffer from severe contamination issues – and not represented in the findings.

A second drawback is that methodologies employed in the reviewed studies are inconsistent, and thus the synthesis of results is difficult. Variations in sampling technique, analytic method and reporting standard hamper direct comparisons and call into question the reliability of the review’s conclusions. Additionally, few studies have baseline data on pre-mining groundwater conditions to make a full assessment of the impact of mining activities on groundwater quality. The review neglects bioaccumulation by limited data on how heavy metals accumulate in food chains and human populations. This limits understanding of long term health risks. In addition, studies that were limited to recent times did not allow for the long term views on mining impacts on groundwater and ecosystems.

None

No conflict of interest.

1. Okey-Wokeh CG, Wokeh OK, Orose E, Lananan F, Azra MN (2023) Anthropogenic impacts on physicochemical and heavy metal concentrations of Ogbor Hill River Water, Southern Nigeria. Water 15(7): 1359.
2. Okafor VN, Omokpariola DO, Obumselu OF, Eze CG (2023) Exposure risk to heavy metals through surface and groundwater used for drinking and household activities in Ifite Ogwari, Southeastern Nigeria. Applied Water Science: 13(4): 105.
3. Egbueri JC, Agbasi JC, Ayejoto DA, Khan MI, Khan MYA (2023) Extent of anthropogenic influence on groundwater quality and human health-related risks: an integrated assessment based on selected physicochemical characteristics. Geocarto International 38(1): 2210100.
4. Irfeey AMM, Najim MM, Alotaibi BA, Traore A (2023) Groundwater Pollution Impact on Food Security. Sustainability 15(5): 4202.
5. Lawniczak-Malińska A, Nowak B, Pajewski K (2023) Agricultural pressures on the quality of ground and surface waters in catchments of artificial reservoirs. Water 15(4): 661.
6. Nduji NN, Madu CN, Okafor CC, Ezeoha MU (2023) A Geo-Hazard Risk Assessment Technique for Analyzing Impacts of Surface Subsidence within Onyeama Mine, South East Nigeria. Land 12(3): 575.
7. Amadi SO, Chigbu TO (2020) An Assessment of the Environmental Impact, Risk Challenges and Mitigation Strategies in Ameka Illegal Mine Sites and Environs in Ebonyi State, Southeastern Nigeria. Environmental & Earth Sciences Research Journal 7(2): 82-88.
8. Afolayan DO, Eggleston CM, Onwualu AP, Adetunji AR, Tao M, et al. (2021) Physicochemical studies for risk identification, assessment, and characterization of artisanal barite mining in Nigeria. Sustainability 13(23): 12982.
9. Godwin PA, Umaru PZ (2018) Illegal gold mining, land degradation and food security in nigeria: a case of yauri, Kebbi state, Nigeria. Journal of the University of Ruhuna, 6(1).
10. Byizigiro RV, Biryabarema M, Rwanyiziri G (2020) Alleviating some Environmental Impacts resulting from Artisanal and Small-scale Mining Sector: A Critical Review. Rwanda Journal of Engineering, Science, Technology and Environment 3(1).
11. Dan EU, Ebong GA, Etuk HS, Daniel IE (2023) Carcinogenic Potentials of Toxic Metals and Polycyclic Aromatic Hydrocarbons in Telfairia occidentalis and Talinum triangulare Impacted by Wastewater, Southern Nigeria. Environmental Protection Research pp.110-129.
12. Sani AH, Musa A, Achimugu MD (2023) Assessment of heavy metal pollution of drinking water sources and staple food cultivars around artisanal mining site in Igade-Mashegu, Niger State, Nigeria. World Journal of Biology Pharmacy and Health Sciences 14(2): 306-319.
13. Milam C, Jildawa D, Onanuga K, Daniel VN (2022) Potential Risk Assessment of Heavy Metals in Agricultural Crops Cultivated Around Abandoned Mine Areas in Barkin Ladi, Plateau State, Nigeria. Journal of Chemical Society of Nigeria 47(6).
14. Mi J, Hou H, Jin Z, Yang X, Hua Y (2023) Long-Term Impact of Ground Deformation on Vegetation in an Underground Mining Area: Its Mechanism and Suggestions for Revegetation. Land 12(6): 1231.
15. Guilin L, Mingxing L, Aihua D, Junhai G, Rongjiu G, et al. (2023) Study on the law of residual deformation in mining subsidence area and its influence on the safety of ground buildings. Frontiers in Earth Science 11: 1127862.
16. Vincent, Ishmael, Egbulefu, Ajiwe (2023) Health Risk Assessment of Heavy Metal Contamination of Groundwater Around Nnewi Industrial Area, Anambra State, Nigeria. International Journal of Environmental Monitoring and Analysis 11(2).
17. Oladapo Okareh T, Allen Sokan-Adeaga A, Akin-Brandom T, Ayodeji Sokan-Adeaga M, Deborah Sokan-Adeaga E (2023) Assessment of Heavy Metals Contamination in Groundwater and Its Implications for Public Health Education: A Case Study of an Industrial Area in Southwestern Nigeria. IntechOpen.
18. Ayejoto DA, Agbasi JC, Egbueri JC, Abba SI (2023) Evaluation of oral and dermal health risk exposures of contaminants in groundwater resources for nine age groups in two densely populated districts, Nigeria. Heliyon 9(4): e15483.
19. Nduka JK, Kelle HI, Umeh TC, Okafor PC, Iloka GC, et al.(2023). Ecological and health risk assessment of radionuclides and heavy metals of surface and ground water of Ishiagu-Ezillo quarry sites of Ebonyi, Southeast Nigeria. Journal of Hazardous Materials Advances 10: 100307.
20. Obasi PN, Akudinobi BEB (2019) Heavy metals occurrence, assessment and distribution in water resources of the lead-zinc mining areas of Abakaliki, Southeastern Nigeria. International Journal of Environmental Science and Technology 16: 8617-8638.
21. Ugochukwu UC, Chukwuone N, Jidere C, Ezeudu B, Ikpo C, et al. (2022). Heavy metal contamination of soil, sediment and water due to galena mining in Ebonyi State Nigeria: Economic costs of pollution based on exposure health risks. Journal of Environmental Management 321: 115864.
22. Kolawole T O, Iyiola O, Ibrahim H, Isibor RA (2023) Contamination, ecological and health risk assessments of potentially toxic elements in soil around a municipal solid waste disposal facility in Southwestern Nigeria. Journal of Trace Elements and Minerals 5: 100083.
23. Abiya SE, Odiyi BO, Ologundudu FA, Akinnifesi OJ, Akadiri S (2018) Assessment of heavy metal pollution in a gold mining site in Southwestern Nigeria. Journal of Genetics and Cell Biology 1(2): 30-35.
24. Adamu CI, Nganje TN, Edet A (2015) Heavy metal contamination and health risk assessment associated with abandoned barite mines in Cross River State, southeastern Nigeria. Environmental Nanotechnology, monitoring & management 3: 10-21.
25. Chukwu A, Oji KK (2018) Assessment of Pb, Zn, As, Ni, Cu, Cr and Cd in agricultural soils around settlements of abandoned lead-zinc mine in Mkpuma Ekwoku, South-eastern, Nigeria. Journal of applied sciences and environmental management 22(9): 1485-1488.
26. Obasi PN (2020) Occurrence and distribution of heavy metal in arable soils around lead-zinc mining sites of Abakaliki, Southeast Nigeria. Modeling Earth Systems and Environment 6(3): 1887-1899.
27. Okonkwo SI, Idakwo SO, Ameh EG (2021) Heavy metal contamination and ecological risk assessment of soils around the pegmatite mining sites at Olode area, Ibadan southwestern Nigeria. Environmental Nanotechnology, Monitoring & Management 15: 100424.
28. Igwe O, Una CO, Abu E, Adepehin, EJ (2017) Environmental risk assessment of lead-zinc mining: a case study of Adudu metallogenic province, middle Benue Trough, Nigeria. Environmental monitoring and assessment 189: 1-13.
29. Ochelebe I, Nkebem GE, Kudamnya EA (2020) Assessment of heavy metals concentration and enrichment levels in soils around quarries and barite mine sites in Part of Akamkpa and Biase Area, Southeastern Nigeria. Journal of Geoscience and Environment Protection 8(8): 107.
30. Odukoya AM, Olobaniyi SB, Oluseyi TO (2018) Assessment of potentially toxic elements pollution and human health risk in soil of ilesha gold mining site, southwest Nigeria. Journal of the Geological Society of India 91: 743-748.
31. Obiora SC, Chukwu A, Davies TC (2019) Contamination of the potable water supply in the lead-zinc mining communities of Enyigba, Southeastern Nigeria. Mine water and the environment 38(1): 148-157.
32. Ochelebe I, Kudamnya EA, Nkebem GE (2020) An assessment of heavy metals concentration in water around quarries and barite mine sites in part of central Cross River State, southeastern Nigeria. Global Journal of Geological Sciences 18: 89-95.
33. Wasiu MO, Ayodele OE, Ayodele TI, Oluremi OI, Temitope OK, et al. (2016) Heavy metal contamination in stream water and sediments of gold mining areas of South Western Nigeria. African Journal of Environmental Science and Technology 10(5): 150-161.
34. Omeka ME, Igwe O (2023) Heavy metals concentration in soils and crop plants within the vicinity of abandoned mine sites in Nigeria: an integrated indexical and chemometric approach. International Journal of Environmental Analytical Chemistry 103(16): 4111-4129.
35. Obiri-Yeboah A, Nyantakyi EK, Mohammed AR, Yeboah SIIK, Domfeh MK, et al. (2021) Assessing potential health effect of lead and mercury and the impact of illegal mining activities in the Bonsa river, Tarkwa Nsuaem, Ghana. Scientific African 13: e00876.
36. Ewusi A, Sunkari ED, Seidu J, Coffie-Anum, E (2022) Hydrogeochemical characteristics, sources and human health risk assessment of heavy metal dispersion in the mine pit water-surface water-groundwater system in the largest manganese mine in Ghana. Environmental Technology & Innovation 26: 102312.
37. Kříbek B, Nyambe I, Sracek O, Mihaljevič M, Knésl I (2023) Impact of mining and ore processing on soil, drainage and vegetation in the Zambian copperbelt mining districts: a review. Minerals 13(3): 384.
38. Muimba-Kankolongo A, Banza Lubaba Nkulu C, Mwitwa J, Kampemba FM, Mulele Nabuyanda M (2022) Impacts of trace metals pollution of water, food crops, and ambient air on population health in Zambia and the DR Congo. Journal of environmental and public health 2022(1): 4515115.
39. Kataba A, Yohannes YB, Nakata H, Yabe J, Toyomaki H, et al. (2023) Association between Chronic Environmental Lead (Pb) Exposure and Cytokines in Males and Females of Reproductive Age from Kabwe, Zambia. International Journal of Environmental Research and Public Health 20(8): 5596.
40. Chiyangi HM, Mwanabute N, Ncube E, Mundike J (2023) Assessing the Occurrence of Heavy Metals in Edible Fruits Grown around Mine Tailings Dam in Kitwe. Journal of Environmental Protection, 14(2): 83-95.
41. Pan Y, Chen M, Wang X, Chen Y, Dong K (2022) Ecological risk assessment and source analysis of heavy metals in the soils of a lead-zinc mining watershed area. Water 15(1): 113.
42. Corami A (2024) Sustainable Remediation Methods for Mining Wastes. In Sustainable Management of Mining Waste and Tailings. CRC Press pp. 254-288.
43. Haghighizadeh A, Rajabi O, Nezarat A, Hajyani Z, Haghmohammadi, M (2024) Comprehensive analysis of heavy metal soil contamination in mining Environments: Impacts, monitoring Techniques, and remediation strategies. Arabian Journal of Chemistry 17(6): 105777.
44. Ewubare PO, Aliyu SO, Michael I, Ejakhaegbe JO, Obomejero J, et al. (2024). An Academic Review on Heavy Metals in the Environment: Effects on Soil, Plants Human Health, and Possible Solutions. American Journal of Environmental Economics 3(1): 70-81.
45. Cullamar DJS, Donor L, Cortiñas ACR, Dosmanos, EB, Almendra SD, et al. (2024) Bioaccumulation of Heavy Metals in Living Organisms, Soil, and Health Risk Assessment: A Systematic Review of Mining Sites in the Philippines. International Journal of Innovative Science and Research Technology 9(7).
46. Biswas HS, Poddar S (2024) Heavy Metals in Foodstuffs: Presence, Bioaccumulation, Origins, Health Risk, and Remediation. In Biosorption Processes for Heavy Metal Removal. IGI Global pp: 85-99.
47. Abubakar MY, Kaugama AA, Japhet AT, Ataitiya H, Ahmad, et al. (2024). Effects and remediation of heavy metals contamination in soil and vegetables from different areas: A review. Earthline Journal of Chemical Sciences 11(3): 445-456.
48. Angon PB, Islam MS, KC S, Das A, Anjum N, et al. (2024) Sources, effects and present perspectives of heavy metals contamination: Soil, plants and human food chain. Heliyon 10(7): e28357.
49. Codex Alimentarius Commission (FAO/ WHO) (2001). Food additives and contaminants. Joint FAO/WHO Food Standards Programme, ALINORM 01/12A:1-289.
50. Ng AHM, Ge L, Chang HC, Du Z (2023) Geodetic Monitoring for Land Deformation. Remote Sensing 15(1): 283.
51. WHO (2011) Guidelines for drinking water quality. (4th ed.p. 564). Geneva: World Health Organization.
